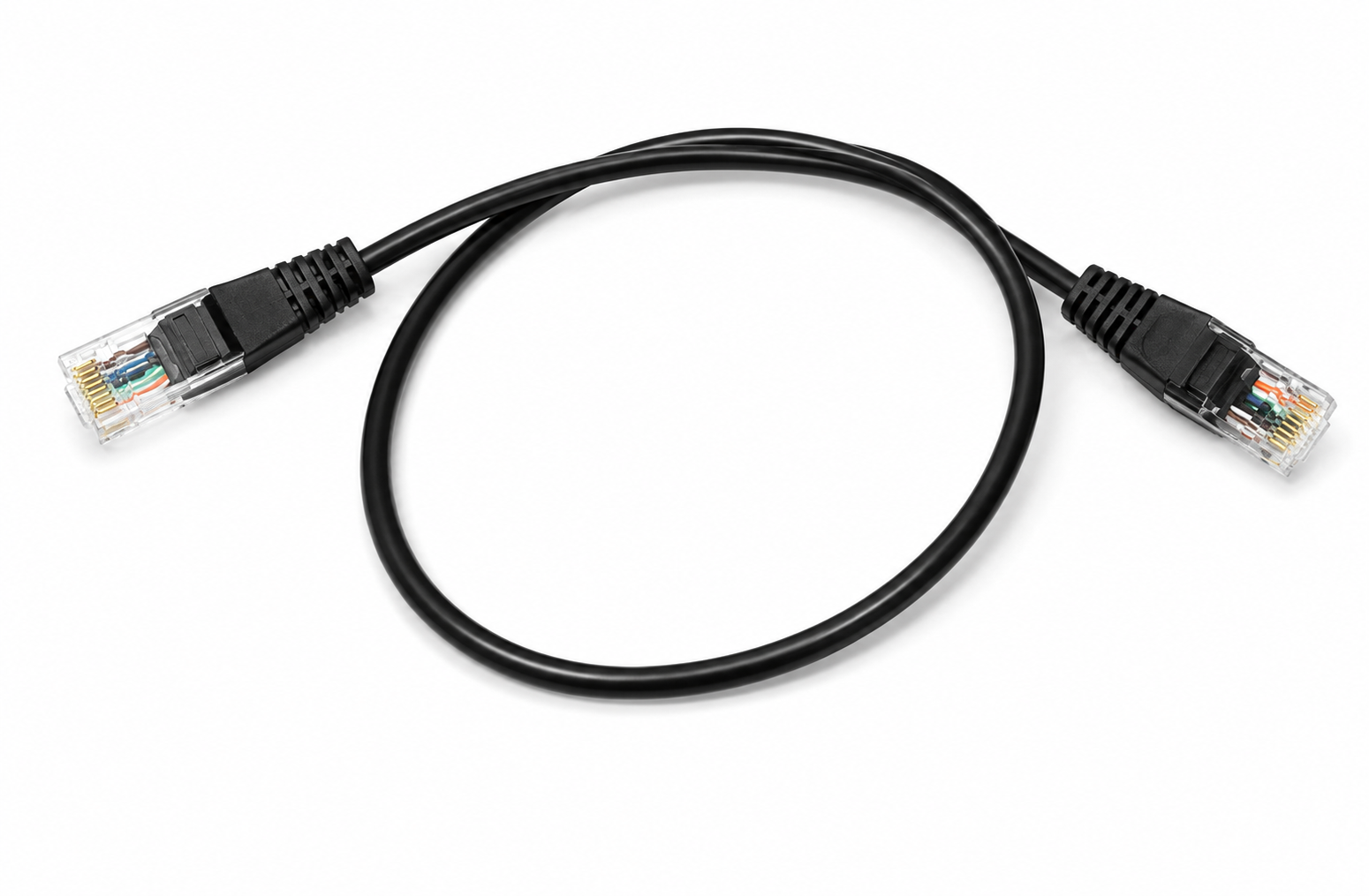

Power-Split Cable
The Power-Split Cable is designed for connecting two IGC-compatible devices that each have their own independent power supply, such as a powered FLARM and an XCVario instrument or an XCTouchNav navi.

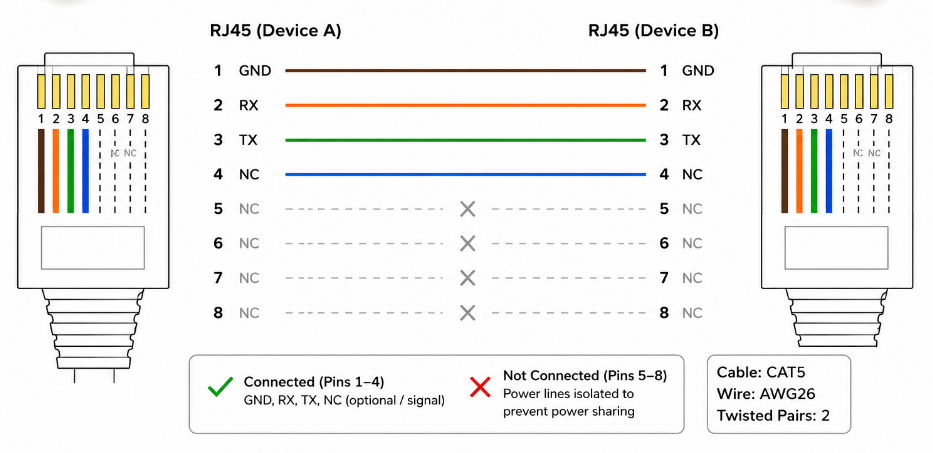

To prevent unwanted power sharing, only Pins 1–4 (GND, RX, TX) are connected. Pins 5–8 remain isolated, ensuring both devices communicate safely while keeping their power supplies electrically separated.
Simply select your preferred cable length when ordering.
Features
- Safe connection of two independently powered IGC devices
- Ideal for powered FLARM installations
- Pins 1–4 connected (GND, RX, TX)
- Pins 5–8 isolated to prevent power sharing
- Available in 50 cm or 100 cm lengths
- High-quality CAT5 cable
- AWG26 conductors with 2 twisted pairs
- Flexible, lightweight and easy to install
