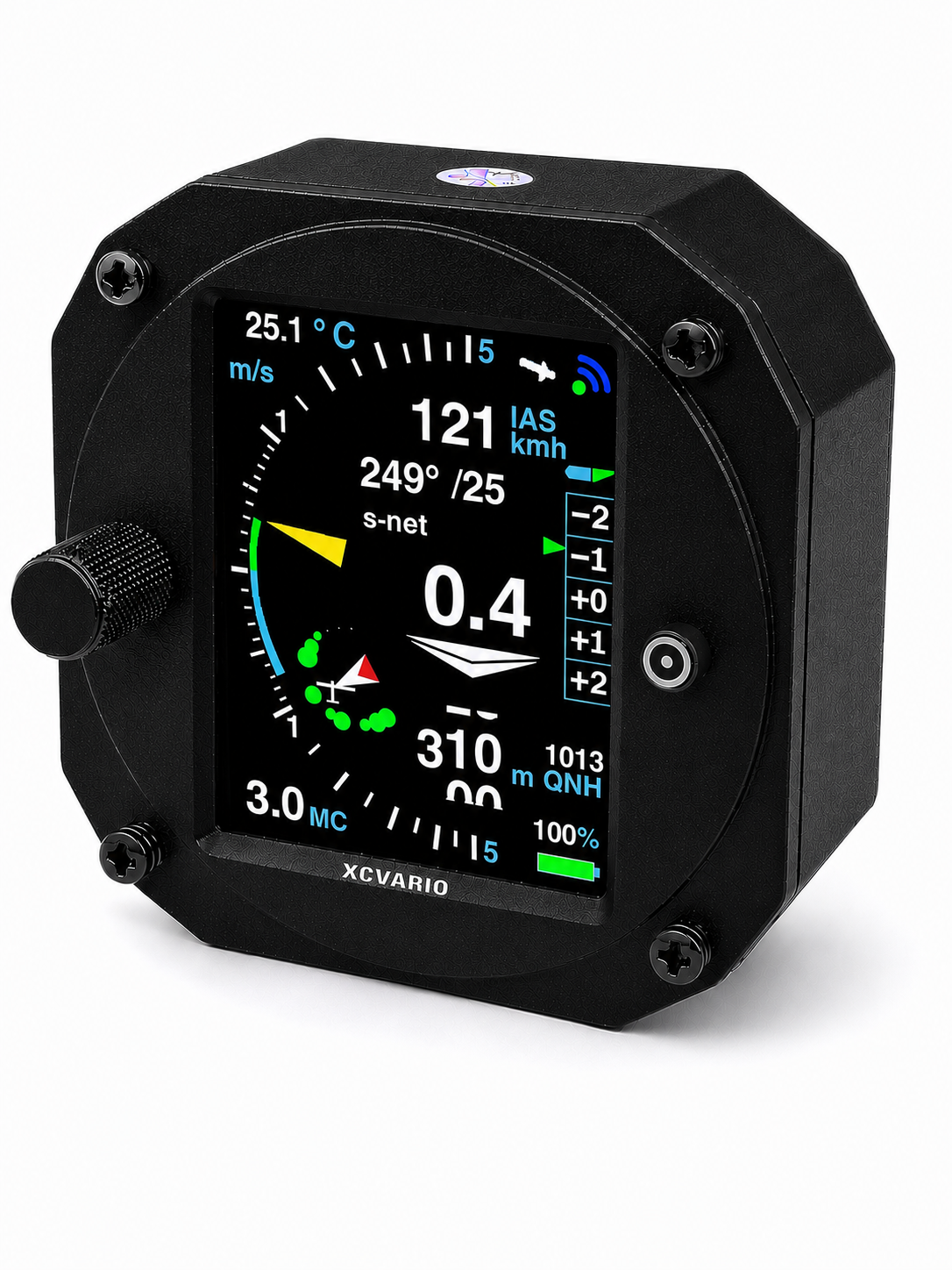

XCVario 80mm with cable

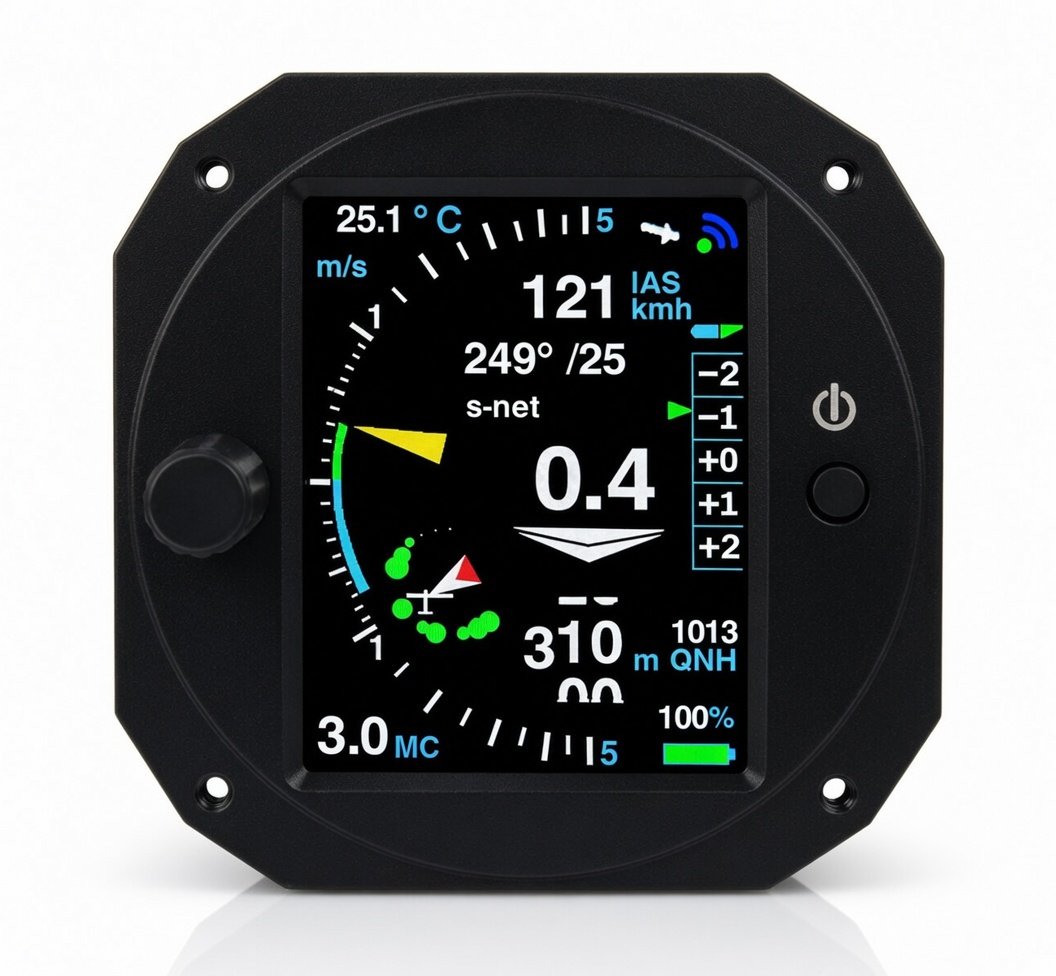

  • Larger 2.8 inch (71 mm) display 320×240 pixel with 1200 nits sunlight readable display
  • Anti glare plus anti fingerprint display surface
  • Direct fit into a standard 80mm panel cutout
  • Bar or round variometer visualisation
  • MacCready speed to fly indicator
  • Altitude indicator
  • Indicated and true airspeed indicator
  • Outside Air Temperature (OAT) indicator
  • Adjustable units (metric, imperial, flight levels)
  • Built-in 3 Watts speaker

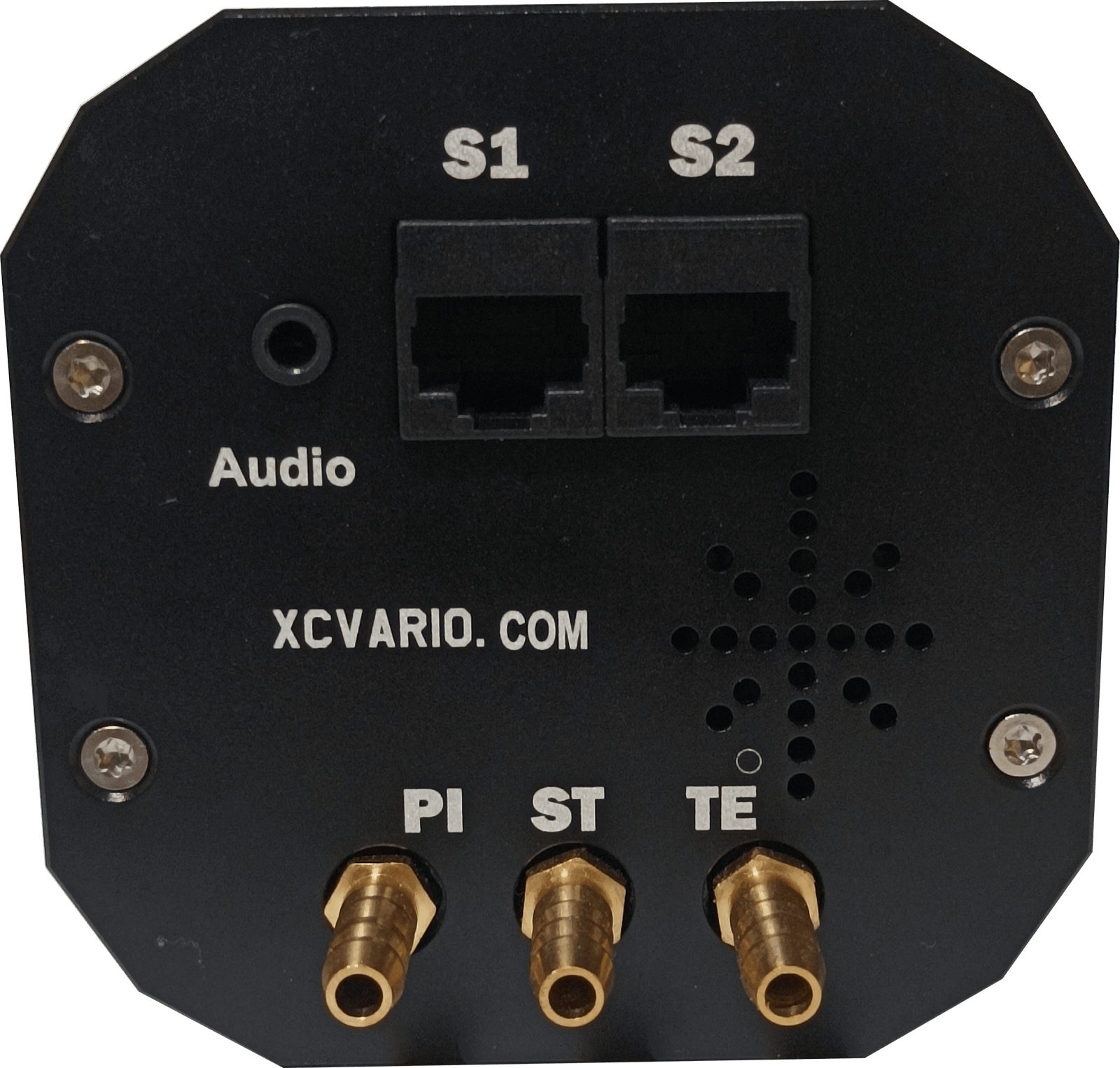

  • Two serial port for connection with FLARM, radio or other instruments
  • Bluetooth, WiFi or serial RS232 connection with XCSoar software
  • CAN bus communication special for two-seaters and or magnetic heading sensor (MHS)
  • Out-of-the box library with more than 130 polars
  • Optimum flap setting display (optional)
  • FLARM warning screen
  • G-Meter screen
  • AHRS driven horizon (optional with the AHRS license)
  • Wind calculation (circling) and live wind display (optional with MHS)
  • AHRS temperature control
  • Includes

    • 80 mm Variometer unit

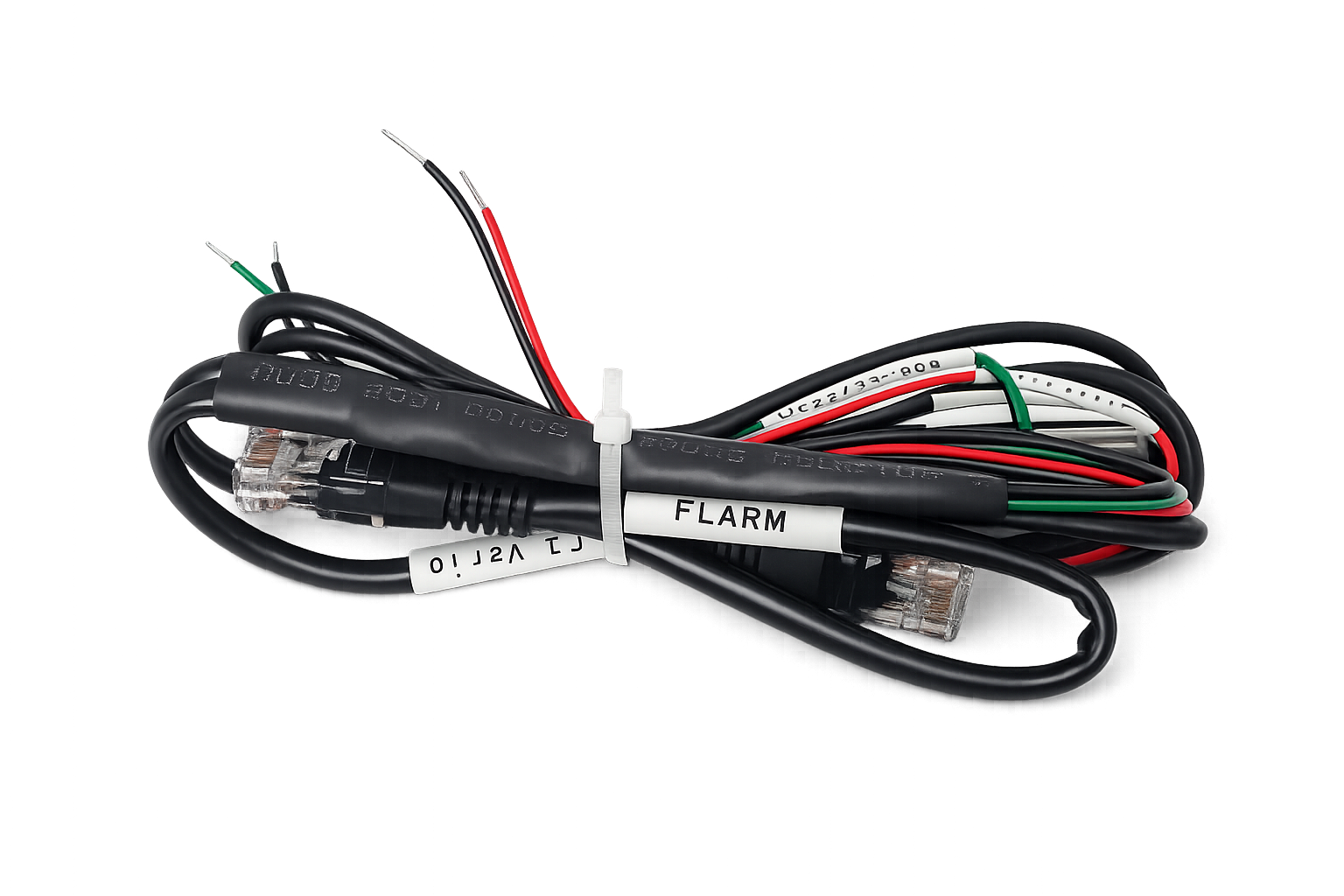

    • Bidirectional Flarm¬† and variometer connection cable
    • Preinstalled and preconfigured software, Plug and Play

XCVario 80mm outine dimensions CAD Modell


Availability: 22 in stock (can be backordered)

SKU: 0001-1 Category:

80 mm version of the well known 57 mm variometer edition 23, with AHRS sensor temperature control (less drift), an improved 3W speaker and brighter and larger display (2.8 inch) with 1200 nits (!) and anti glare plus anti fingerprint surface.

Weight 0,5 kg
Dimensions 15 × 15 × 10 cm
