Power Splitter FLARM
The FLARM Power Splitter allows to connect a flight recorders or avionics devices by IGC standard RJ45 interface to share a FLARM serial connection while keeping their individual power supplies electrically separated.
Unlike a standard Y-Pieces, the splitter connects only the data lines and ground, preventing the 12 V power outputs of both devices from being connected together. This makes it the ideal solution when both connected instruments must remain powered independently while exchanging FLARM data, that is a typical situation with a Power Flarm.
The splitter is supplied with a 30 cm RJ45 LAN cable for quick and straightforward installation.
Features
- Connects one FLARM device via RJ45 interface
- Isolates the 12 V power supply lines

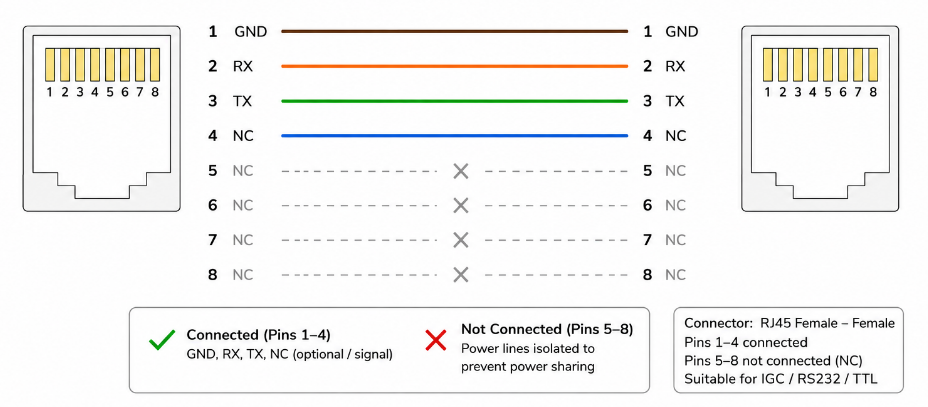

- Connects GND and serial RX/TX only (pins 1–4)
- Prevents power supply conflicts
- 2 × RJ45 female connectors
- Plug & Play installation
- Includes 30 cm RJ45 LAN cable
Includes
- FLARM Power Splitter
- 30 cm RJ45 LAN cable
