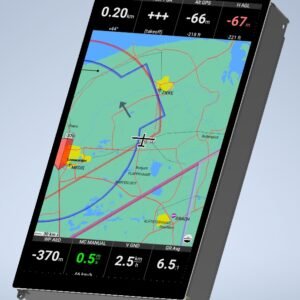

XCTOUCHNAV 5.7

Product Description:

Included in the Box:

• Coaxial Power Connector (5.1 mm) for 12V power with screw terminals
• 30 cm flexible LAN cable (70 cm available upon request in the order notes)

The device features a robust, black anodized aluminum housing, providing excellent shielding against electromagnetic interference (EMI) for quiet, reliable transmission. The compact design is only 35 mm high, and it comes with a standard 5.7-inch display. It can be powered directly from a 12V onboard electrical system. Power consumption is approximately 4 watts (300 mA at 12.8V), with a brief 15% increase during processor-intensive tasks like zooming.

The system runs on Android 13, complete with the Google Play Store, allowing you to install Android apps directly. Supported wireless interfaces include Wi-Fi (802.11b/g/n) and Bluetooth (BT4.0). For connecting avionic hardware with serial interfaces, the device features three IGC-compatible serial ports (1x DTE, 2x DCE), configurable to support all baud rates supported by XCSoar.

Connectivity Features:

• Four multi-channel USB-A 2.0 ports on the rear and one LAN port for additional devices, such as remote controls.
• One USB-A 3.0 port and one USB-C port located on the bottom.
• USB devices can be powered from the USB-A ports (max 1A current, 5W).
• A microSD card slot supporting up to 32 GB for storage expansion.
• 3.5mm headphone jack for audio output, with a 3-watt stereo power amplifier accessible through two 3.5mm mono jack sockets on the rear.
• The rear panel also includes the DC jack, with a matching cable provided in the box.

A virtually silent internal fan ensures optimal cooling of the CPU, even during extended use on hot days. While likely unnecessary in cooler regions, the fan can be unplugged internally in areas where it’s not needed.

Technical Specifications:

• CPU Board: 32 GB Flash storage, 2 GB RAM, and an energy-efficient 1.8 GHz Quad-Core processor.
• A microSD card can be added for additional storage.
• Display: 5.7-inch screen with a 800 x 600 resolution and a brightness of nearly 1650 nits, making it exceptionally bright and easily readable in sunlight. The display uses IPS technology for high contrast and wide viewing angles, with an anti-glare coating for improved visibility from almost any angle.
• The display is a multi-touch touchscreen, making it ideal for complex tasks such as pre-flight planning and system setup.

Pre-installed Software:

• XCSoar navigation software is pre-installed and will start automatically upon powering up. Our navigation system offers superior performance and user-friendliness compared to other systems available on the market.
• The device comes with two standard mounting holes for a 1-inch ball mount for easy installation.

This compact, feature-rich device is the ideal solution for aviation enthusiasts and professionals seeking a powerful and reliable navigation system with extensive connectivity options.
