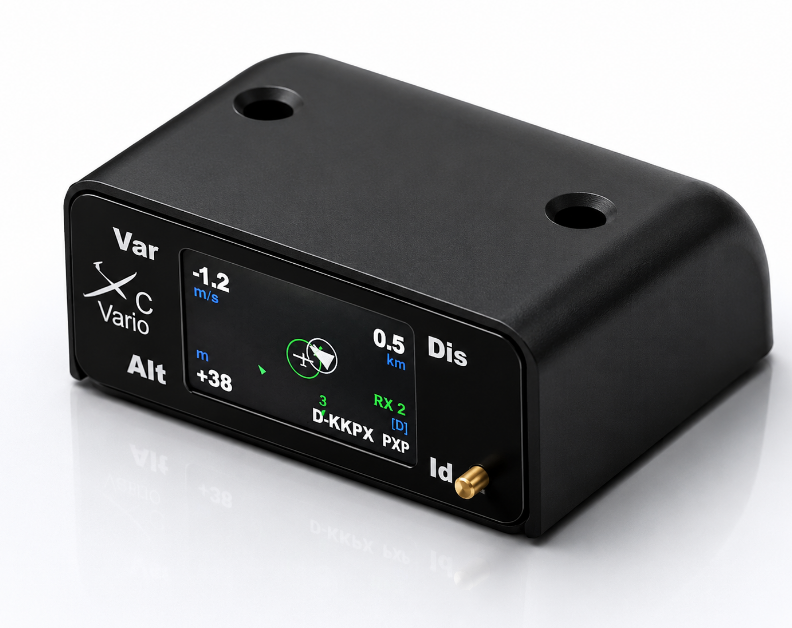

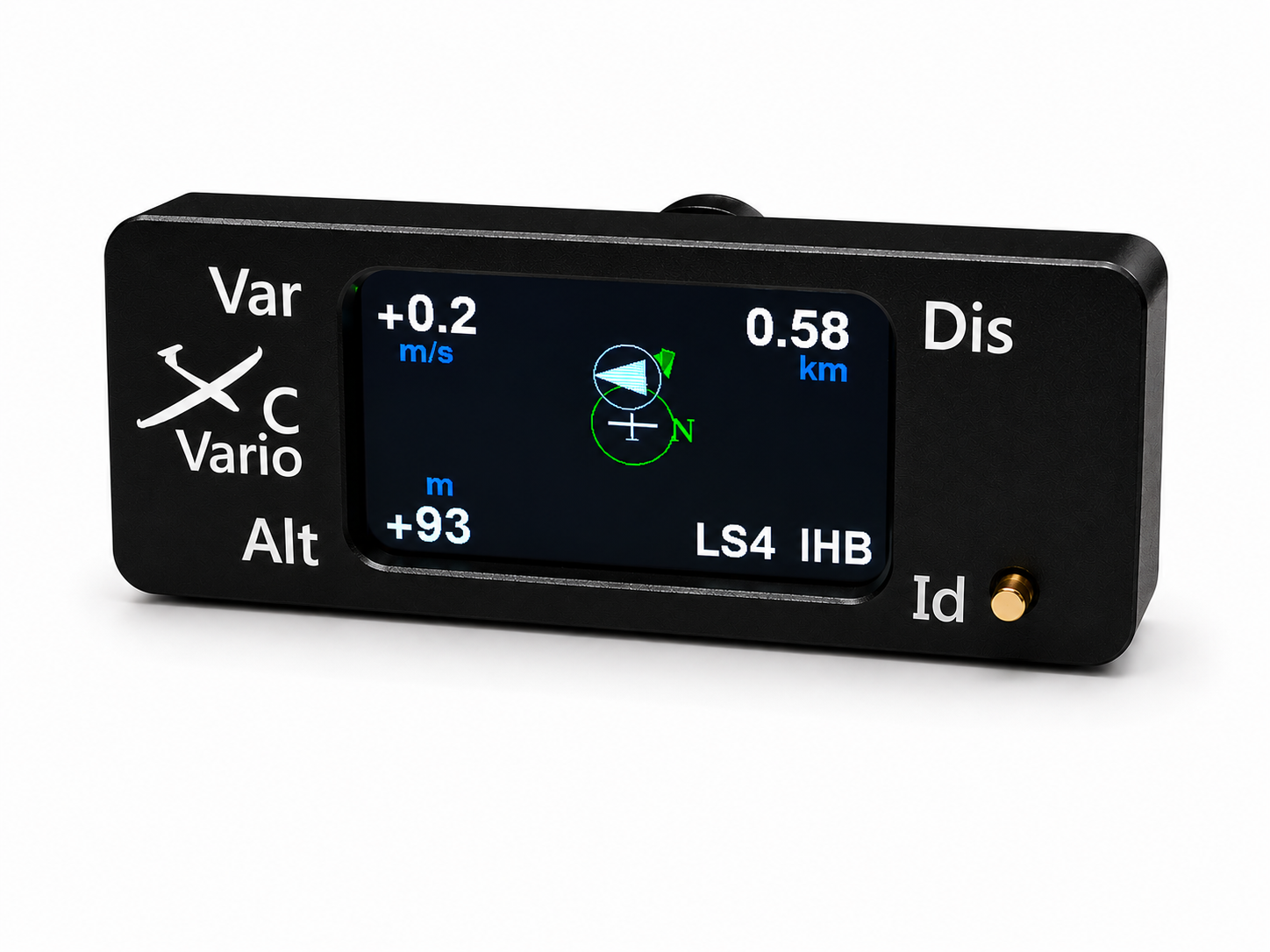

The XCFlarmView 1.4 is a sunlight readable IPS LCD display based small size Flarm display to automatically visualize traffic nearby without need for zooming or any other user intervention in flight. The system is an excellent add-on for any kind of Flarm featuring a standard IGC port.
The SW keeps being extensible as an open source software, buildable in your own clone on github. It features a wired serial connection for a stable and latency free connection and mostly works by plug and play with any Flarm on the market, and may operate in parallel to other devices on the same serial interface. Software update is possible via WiFi.
At size 63.6 x 24.5 x 6.9 mm, the width is practically the same as the well known LED Flarm Display V3 at (63 x 25 x 5.6 mm) the height is even 5 tenths smaller, that should fit everywhere, and the depth, 1.3 mm more, hardly plays a role.
-
Black anodized durable aluminum housing
-
Works with any Flarm featuring a serial connection
-
Open Source Arduino programmable (https://github.com/iltis42/XCFlarmView)
-
OTA SW update
-
Audio volume adjustable
-
Target selection by ID button
-
Flarmnet database already include in software
-
Regular SW builds for recent OGN and Flarmnet DB and released in github
-
2.4 kHz Buzzer with 85 dB (@ 10cm) for traffic notification (head up)
-
Inside USB 2.0 Type B female USB Jack for factory load
- Size (LxHxD) 63.6 mm x24.5 x 6.9 mm (including RJ45 Jack 22 mm deepth
Documentation: XCFlarmDisplay-240103
Demo Video: Flarm Alert
Optional 60cm flexible RJ45 cable
