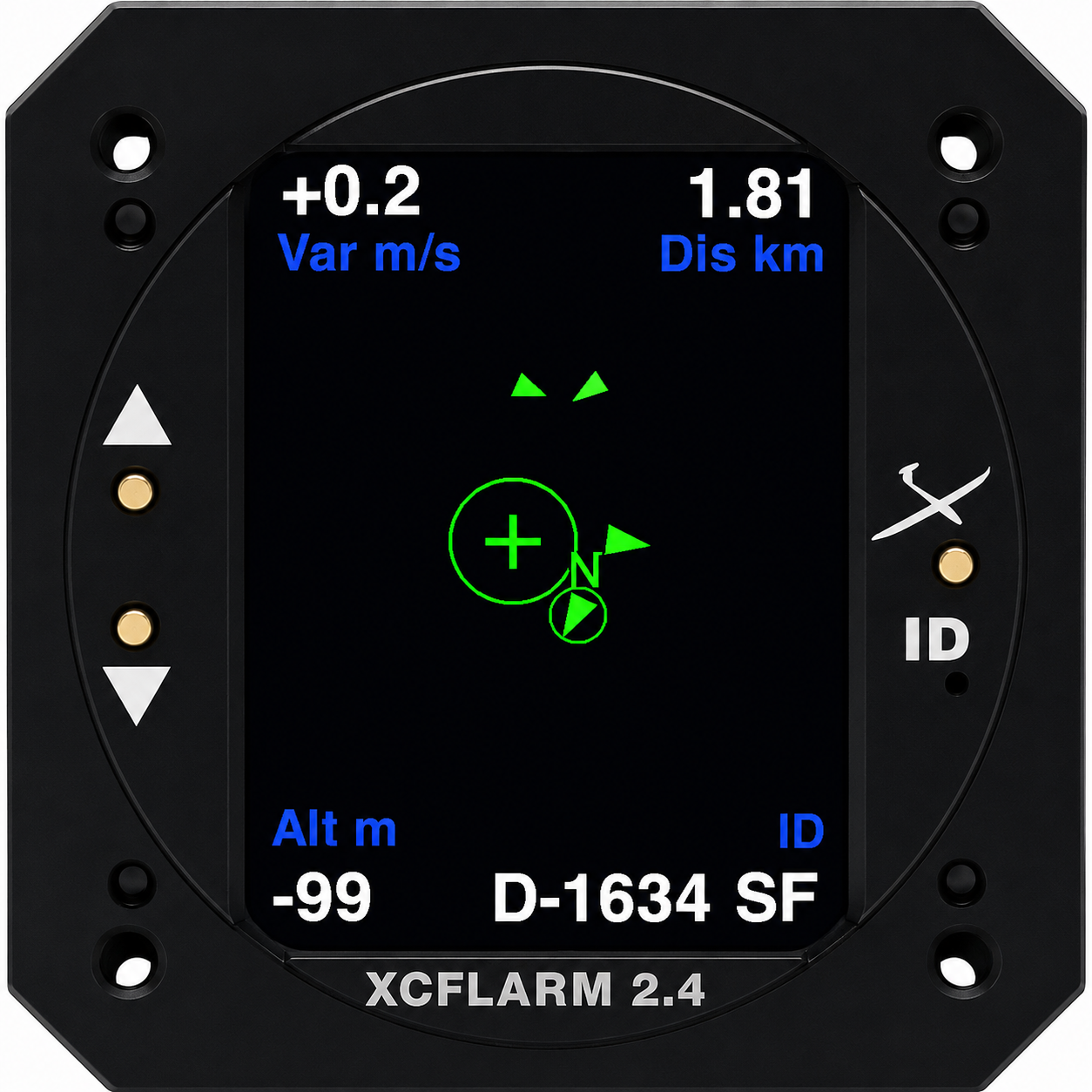

XCFlarmView 2.4

199,00

Flarm display to automatically visualize traffic nearby

  • Fits into standard 57 mm instrument panel cut-out
  • Zoom function
  • Loop through port for serial IGC interface
  • Larger 2.4 inch display
  • Linear or logarithmic scale for distance

Availability: 90 in stock

Category:

The XCFlarmView 2.4 is a sunlight readable IPS LCD based small size Flarm display to automatically visualize traffic nearby capable to zoom in/out with two buttons on the left side. The system fits into an 57 mm instrument panel cut-out and is an excellent add-on for any kind of Flarm featuring a standard IGC port. It also provides a loop through port to connect your Flarm also to a second device.  The SW keeps being extensible as an open source software, buildable in your own clone on github.  It features a wired serial connection for a stable and latency free connection and mostly works by plug and play with any Flarm on the market, and may operate in parallel to other devices on the same serial interface. Software update is possible via WiFi.

  • Black anodized durable aluminum housing

  • Works with any Flarm featuring a serial connection

  • Open Source programmable (https://github.com/iltis42/XCFlarmView)

  • OTA SW update

  • Audio volume adjustable

  • Target selection by ID button

  • Flarmnet database already include in software

  • Regular SW builds for recent OGN and Flarmnet DB and released in github

  • 2.4 kHz Buzzer with 85 dB (@ 10cm) for traffic notification (head up)

  • Inside USB 2.0 Type B female USB Jack for factory load

  •  Size (LxHxD) 63 mm x 63 mm x 10 mm (including RJ45 Jack 18 mm deepth)

Documentation: XCFlarmDisplay-240424

In case your setup needs also a connection cable, we provide the perfect cable with 60 cm length here: Flexible Lan Cable 60cm

Weight 0,05 kg
Dimensions 6,5 × 2,5 × 0,20 cm
