XCTouchNav 5.7 Inch V2

Product Description:

Included in the Box:

• Power cable red/black
• 30 cm flexible LAN cable (60 cm available upon request in the order notes)
• 30cm usb 2.0  panel mount extension cable
• GPS with 1.5 M cable with RJ45 connector to connect to ttyS3
• RJ45 powersplit cable
• Smallest and lightweight 5.7 inch navigator in the market

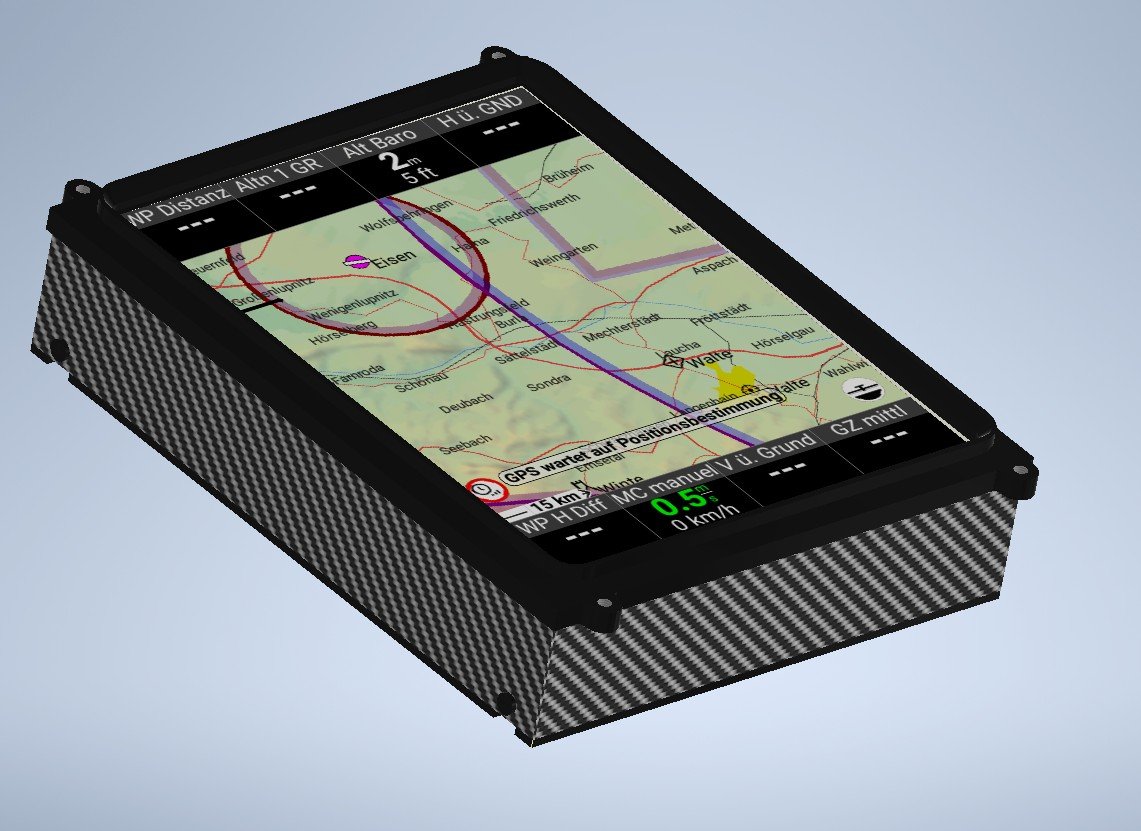

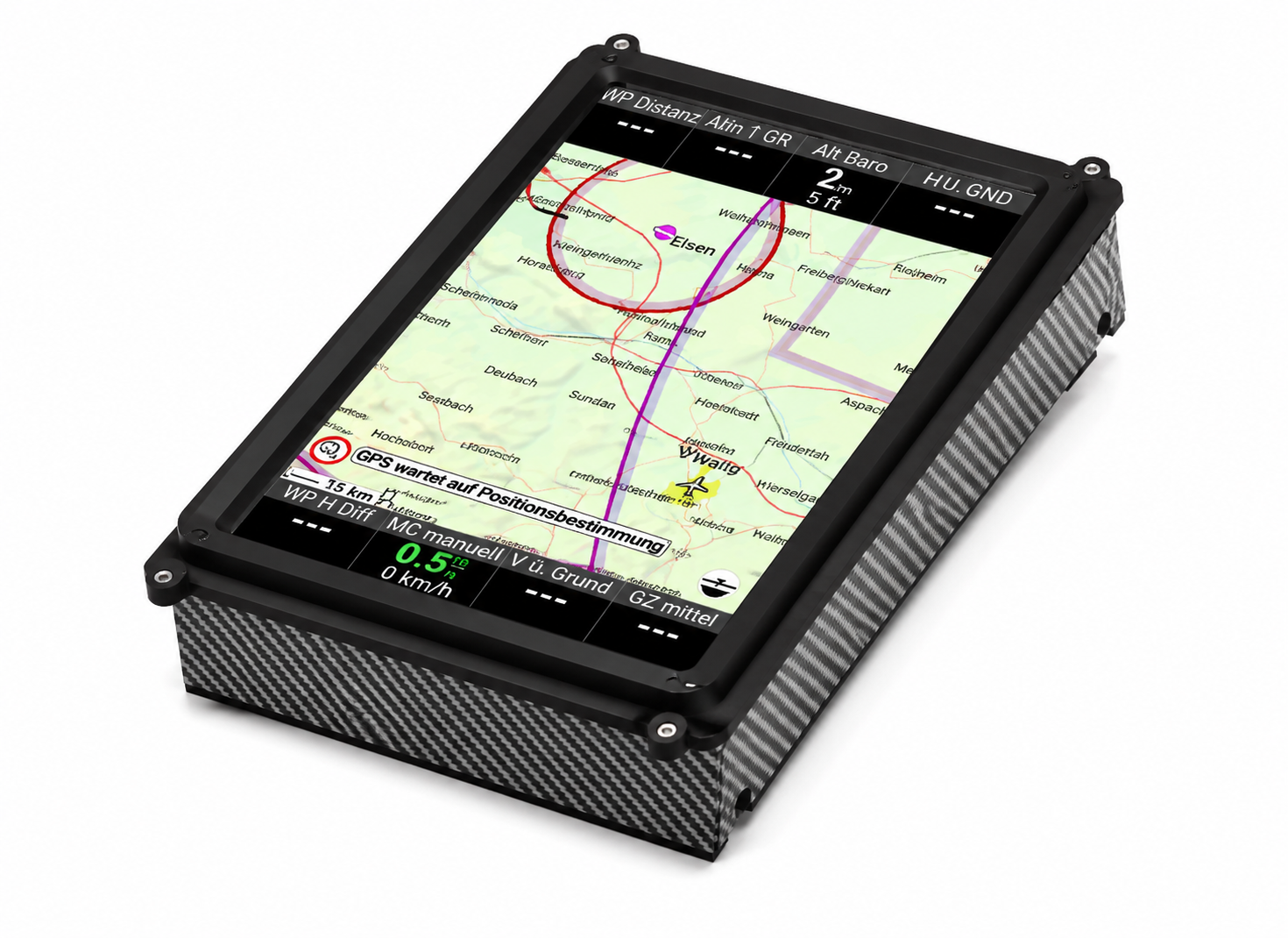

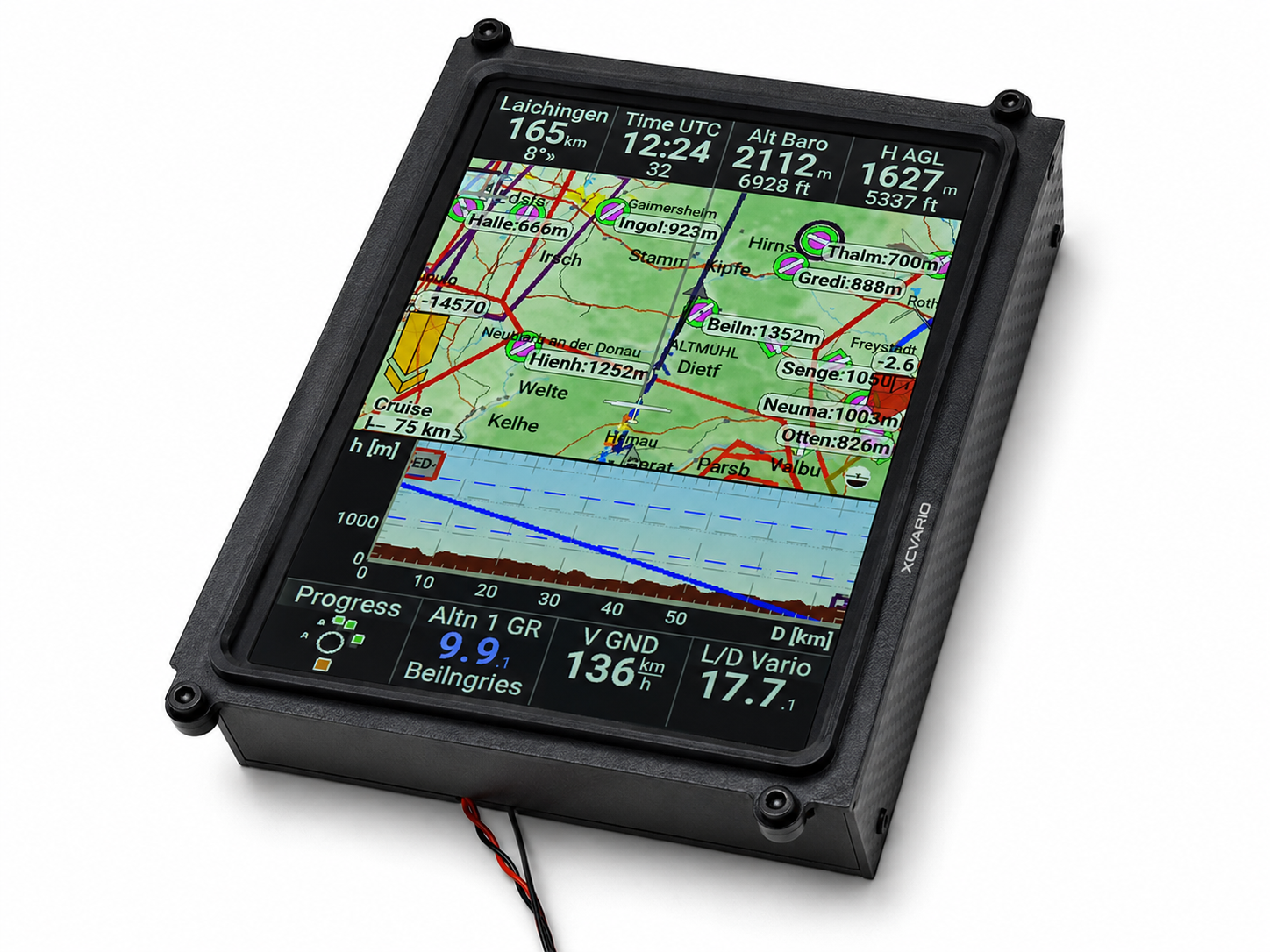

This device is a 5.7-inch touchscreen Android-based navigation system.

The housing is crafted from black powder-coated aluminum and sides from Carbonfiber Sheet , providing effective shielding against electromagnetic interference (EMI) for quiet, reliable transmission. With a height of just 27.5 mm, it features a standard 5.7-inch display and can be powered directly via a 12V onboard electrical system. Power consumption from the gadget is approximately 5 watts (400 mA at 12.9V) without a fan, with a brief 15% increase during processor-intensive tasks like zooming.

The device runs on Android 13 with full access to the Google Play Store, allowing you to directly install Android apps.

Connectivity Features:

• Supported wireless interfaces: Wi-Fi (802.11b/g/n) and Bluetooth (BT4.0).
• For connecting avionic hardware via serial connections, the device provides three IGC-compatible serial interfaces (1x DTE ttyS5, 2x DCE ttyS4 and ttyS7,  int. GPS port ttyS3 ), which are configurable to support all baud rates compatible with XCSoar, Flarm or GPS devices.
• Four multi-channel USB-A 2.0 ports on the back and one LAN port for additional devices, such as remote control sticks.
• USB port next to the 3.5 mm jack is USB OTG.
• USB devices can be powered from the USB-A ports, with a maximum current of 1A (5W).
• A mono jacks on the rear and a stereo power amplifier (3 watts) one build in speaker.

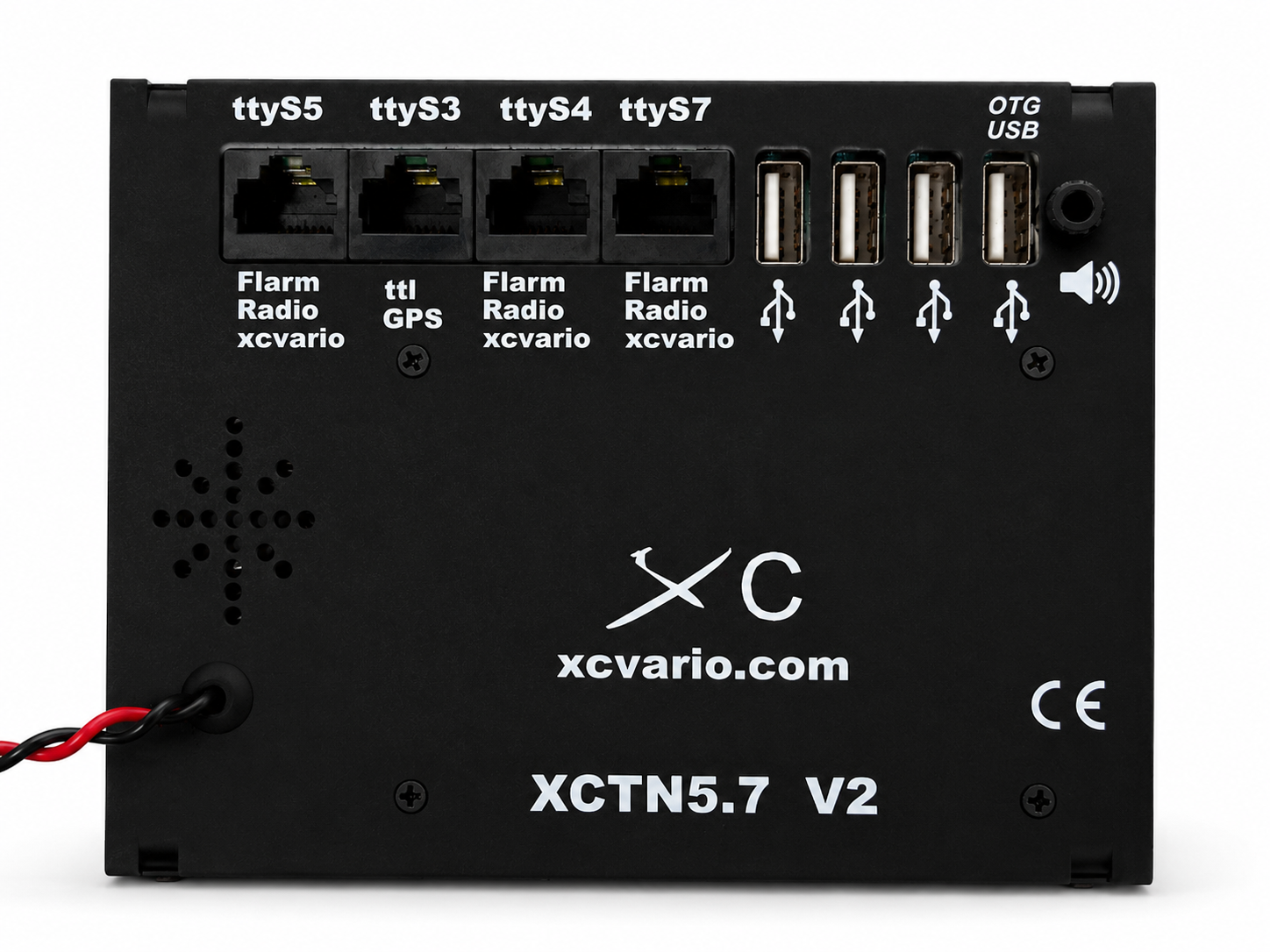

A view of the rear with the connection ports is available in the product gallery. In addition to the audio jack, the rear features the DC input cable.

Cooling & Performance: The device includes a barely perceptible fan to maintain optimal temperature levels for the CPU, even on the hottest days. In cooler climates, such as Nordic regions, the fan can be easily disconnected internally if not needed.

Technical Specifications:

• CPU Board: 32, 64 or 128 GB Flash storage, 2 or 4 GB RAM, and a power-efficient 1.8 GHz Quad-Core CPU.
• Internal GPS connection
• Display: 5.7-inch screen with a resolution of 640 x 480 and a brightness of nearly 1600 nits, making it exceptionally bright and easy to read in direct sunlight. The display features IPS technology for superior contrast and wide viewing angles, and it has an anti-glare coating for optimal visibility.
• The touchscreen is multi-point, making it highly intuitive for tasks such as pre-flight planning and system configuration.

Pre-installed Software:

• XCSoar and Opensoar are pre-installed and will launch automatically upon powering on. This navigation system offers significantly greater performance and user-friendliness compared to other systems available on the market.

This powerful and compact navigation solution is perfect for aviation enthusiasts and professionals who require a reliable, feature-rich system with exceptional connectivity and ease of use.
