The redesigned XCVario-57Â V2Â is finished with a premium powder coating, delivering a durable, high-quality surface that stays looking new even after years in the cockpit. The redesigned rear housing provides additional space for the speaker diaphragm and increased rigidity, resulting in improved audio quality with a clearer sound.
The hardware comes , a powerful 3W speaker and sunlight readable display with 1200 nits with anti glare plus anti fingerprint surface.
- Total Energy (TE) variometer with optimized Kalman filter, adjustable damping, and electronic TEK compensation (no TEK probe or compensation bottle required)
- Advanced audio with configurable deadband (±0.3 m/s), optional sink tone suppression, and fully adjustable sound characteristics
- Classic variometer display plus Speed-to-Fly (MacCready) with automatic switching (speed / circling / button)
- High measurement accuracy with digital barometric and pressure sensors, including netto and super-netto variometer with load factor (n·g) compensation
- New generation AHRS sensor (less drift, temperature controlled)
- Simple and intuitive operation (push & turn) with dedicated student mode for club use
- Sunlight-readable 1200 nits display with anti-glare and anti-fingerprint coating and clear 270° needle visualization
- Full FLARM integration with automatic traffic warning screen (acoustic and visual alerts)
- Compact 57 mm standard instrument, plug & play installation, robust and low power consumption

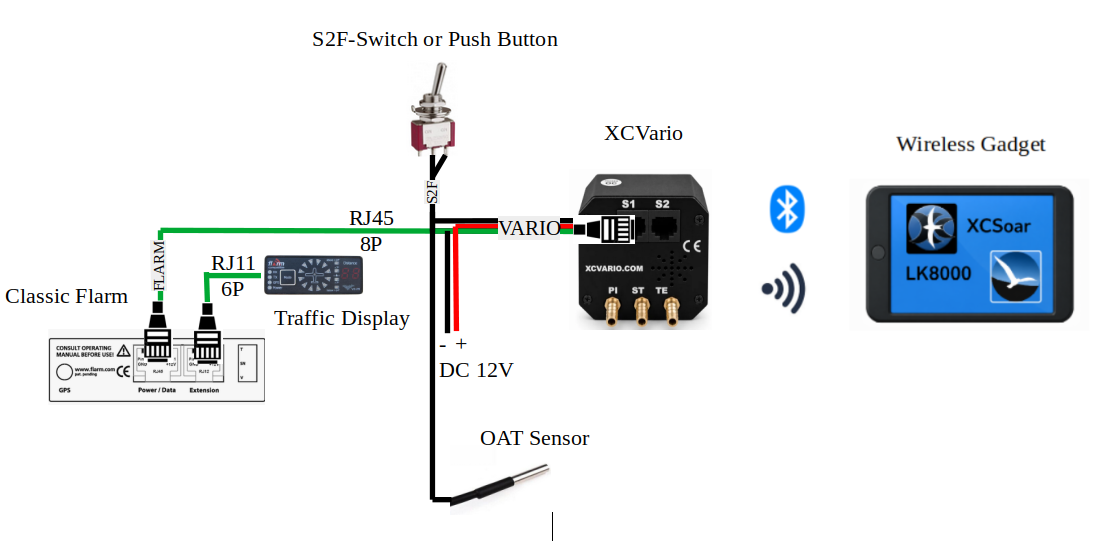

- Extensive connectivity: 2× RS232, Bluetooth, WiFi, XCSoar / LK8000, etc integration, full FLARM bridge
- Excellent price-performance ratio, ideal for club and fleet operation
- Symmetric case 64 x64 x34 mm, fits in narrow panels
- MacCready speed to fly indicator
- Integrated digital Altitude indicator
- Integrated airspeed indicator (IAS/TAS)
- Outside Air Temperature (OAT) indicator
- Adjustable units support metric, imperial (ft, knots) or flight levels
- CAN bus communication for a second unit in two-seaters and or magnetic heading sensor (MHS)
- Out-of-the box library with more than 150 polars
- Supports optional optimum flap setting display
- Supports optional G-Meter screen
- AHRS driven horizon (optional with the AHRS license)
- Wind calculation (when circling) and also live wind display (with MHS)
- AHRS unit temperature compensated
Includes
- 57 mm Variometer unit
- Bidirectional Flarm and variometer connection cable
- Preinstalled and preconfigured software, Plug and Play
If you are designing your own panel, you can download the CAD STEP model here: Â Â CaseModel 57V2 (step, zipped)
