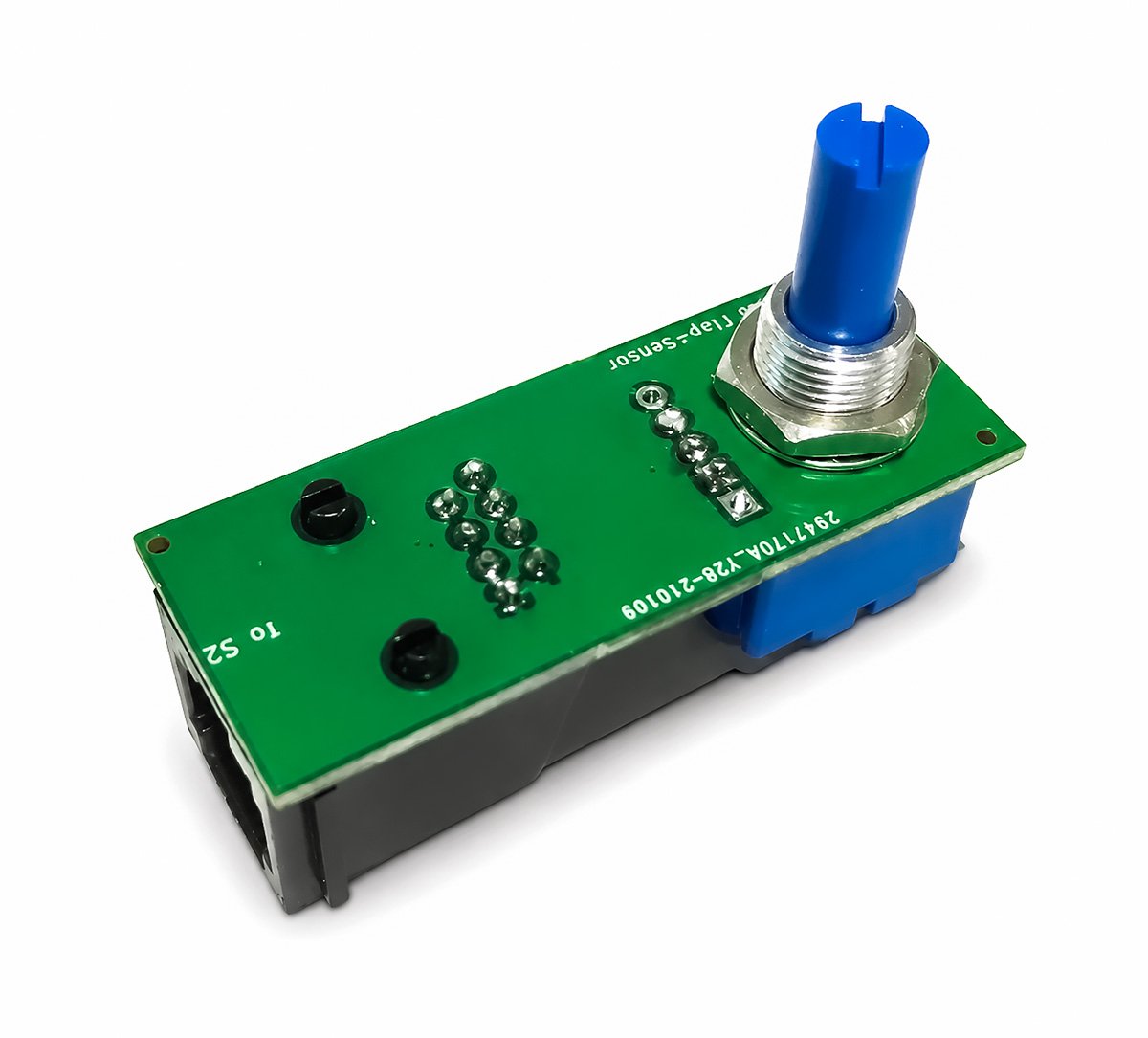

XCVario Flap Sensor
The XCVario Flap (Position) Sensor connects directly to the XCVario S2 interface and provides precise spoiler position measurement for flap indication and flight calculations. Installation is simple using a standard RJ45 patch cable.
Features
- Direct S2 interface connection
- Plug & Play via RJ45
- High-quality 10 mm potentiometer
- 100,000 cycle lifetime
- Integrated voltage regulation & linearization
- 270° rotation, 6 mm shaft
- Accepts 12 V from XCVario
- Includes 3 m shielded CAT6 cable
Installation: Connect directly to the S2 interface or the Flap Sensor port on the S2 Extender. Linkage installation depends on the aircraft type; an example with ball-joint rods is provided in the installation manual.
Note: To minimize possible radio interference, especially when routed parallel to the CAN bus cable, we recommend using a double-shielded S/FTP twisted-pair patch cable.
